Dual Material Options
Yixing Xiongyu Ceramics Co., Ltd. manufactures the ceramic standoff insulator using either 95% alumina or steatite ceramic. Steatite offers good electrical insulation and machinability at a lower cost. Alumina provides higher mechanical strength and better heat resistance. Both materials have low water absorption and high surface resistance, making the product suitable for demanding electrical environments. We have produced these components for over 20 years, serving clients in power distribution and industrial equipment sectors.
Support and Insulation Functions
The ceramic standoff insulator supports live electrical components while keeping them isolated from mounting bases. Unlike plastic or metal supports, the product does not deform under heat or lose its insulating properties under high voltage. It offers high mechanical strength to hold components without breaking. It also provides excellent insulation resistance to prevent leakage and flashover. Its weather resistance allows the product to perform reliably in humid, dusty, or chemically aggressive conditions.
Design Flexibility and Cost Advantage

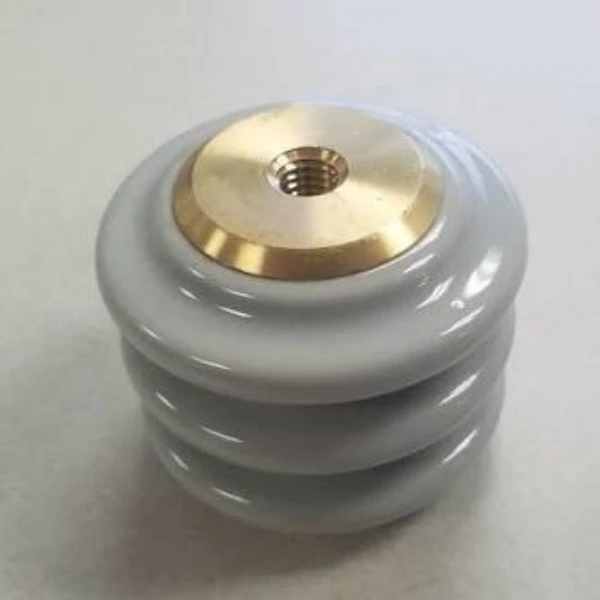

The ceramic standoff insulator comes in columnar or tower shapes with threaded holes, through holes, or metal inserts at both ends. Surface treatment options include glazed and unglazed finishes. We helped a switchgear manufacturer replace imported products with our custom design. We reduced the lead time from two months to four weeks and cut costs by 25%. The client ordered 3,000 pieces. Every product undergoes appearance, dimension, and electrical testing before shipment.
Product Specifications
|
Parameter |
Specification |
|
Material |
95% Alumina / Steatite Ceramic |
|
Surface Treatment |
Glazed / Unglazed |
|
Common Thread Sizes |
M4 / M6 / M8 (customizable) |
|
Installation |
Threaded / Through-hole / Metal Inserts |
|
Insulation Resistance |
Meets high-voltage equipment requirements |
|
Customization |
Dimensions, thread size, surface finish per drawing |
|
Lead Time |
One month |
